| 额定容量: | 3500mah | 额定电压: | 3.7V |
|---|---|---|---|
| 内阻: | 工作电压: | 2.5V-4.2V | |
| 尺寸: | 18.4* 65.0±0.2mm | 重量: | Max. 49.0 g |

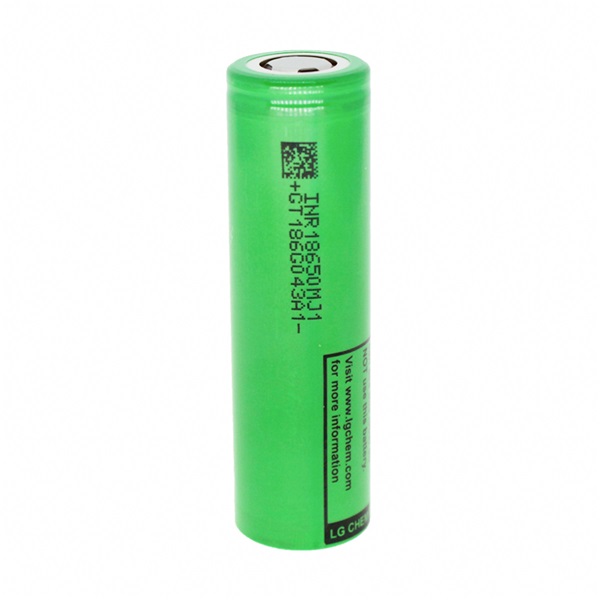

一、圆柱锂电池LG MJ1 18650 3.7V 3500mah三元锂电池
规格：
型号：INR18650-MJ1
尺寸：18650
款式：平顶
化学：印度卢比
标称容量：3500mAh
连续放电额定值：10A
标称电压：3.6v
可充电：是
大概尺寸：18.30mm x 65.10mm
大约重量：49g
LG mj1 datasheet
Item | Specification |
Nominal capacity | 3500mAh |
Nominal voltage | 3.635V |
Constant charge current | 0.5C C (1700mA) |
Constant charge voltage | 4.2V |
End charge current (Cut off) | 50mA |
Max. Charge Voltage | 4.2 ± 0.05V |
Max. Charge Current | 1.0 C (3400mA) |
Standard Discharge Current | 0.2C (680mA) |
Discharge End voltage (Cut off) | 2.5V |
Max. Discharge Current | 10A |
Weight | Max. 49.0 g |
Operating Temperature | Charge: 0 ~ 45℃ Discharge: -20 ~ 60℃ |
Dimension | Diameter: 18.4* 65.0±0.2mm |
LG MJ1 INR18650MJ1 DATA SPECS SHEET
Applications of LG MJ1 3500mah battery
For ebike battery, power bank, flashlight, battery pack, power tools as main application
1. Telecommunications
2. Portable equipment: digital camera, portable DVD, portable television,
3. Portable Devices: GPS/PDA, PMP, PSP, and portable medical devices, instruments, and apparatus, etc.
4. Illuminate Devices: miner lamp, searchlight, lighting devices, emergency light.
5. Other toys: e-cigarettes, mc models, and power tools. It is widely used in POS systems and Solar supply systems, electric instruments, household appliance areas, and emergent devices.
